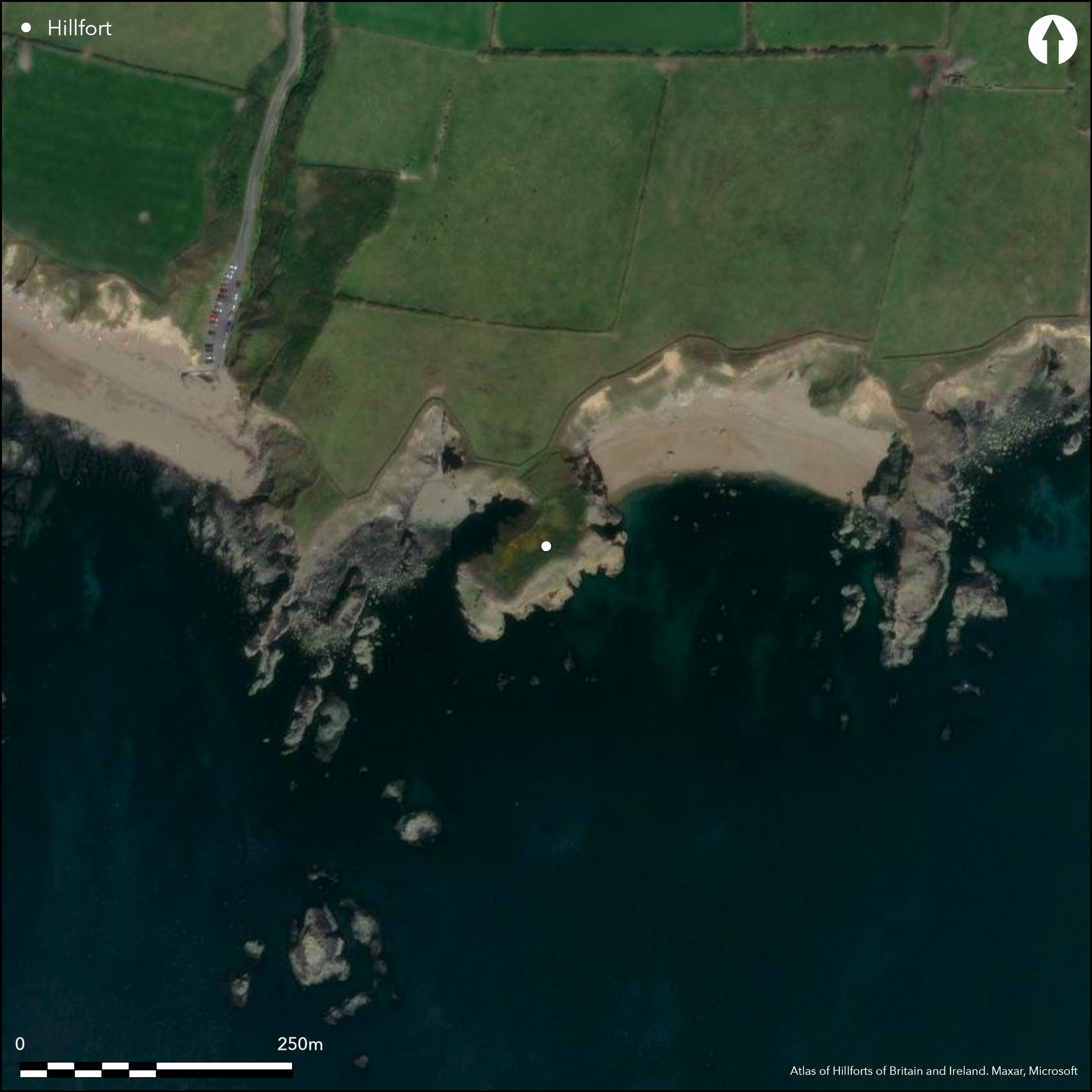

Satellite Imagery
Satellite Imagery
HER: Archaeological Survey of Ireland SMR Database WA026-038 (None)
NMR: WA 026 (None)
SM: None
NGR: None
X: 654871 Y: 598357 (IRENET95)
The site is located on a coastal promontory of that projects S from the mainland, c. 4km SW of Tramore town in Co. Waterford. Named as 'Illaunacoltia' on the first edition 6-inch OS map, the landmass is defended at the neck by two eroding banks and ditches lying NE/SW across the neck of the headland. The inner bank measures 22m in length by 4.8m in width and has an internal height of 0.35m, and its external ditch measures 0.5m in depth. The outer bank (Wth 2m by 0.3m in height) and ditch (Dpth 1.45m) lie 12m beyond the inner ditch and are about 28m in length. It is suggested that a causeway that crosses both the outer and inner ditches is modern in date (Moore 1999, 66; Westropp 1906, 256; 1908, 230; 1914-16, 215). There are no recorded features within the interior of the site which is currently under pasture.
Citizen Science: ✗
Reliability of Data: Confirmed
Reliability of Interpretation: Confirmed
X: -801332 Y: 6824454 (EPSG: 3857)
Longitude: -7.198487931355324 Latitude: 52.13435015787428 (EPSG:4326)
Country: Republic of Ireland
Current County or Unitary Authority: Waterford
Historic County: Waterford
Current Parish/Community/Council/Townland: Garrarus
None
| Extant | ✓ |
| Cropmark | ✗ |
| Likely Destroyed | ✗ |
None
| Woodland | ✗ |
| Commercial Forestry Plantation | ✗ |
| Parkland | ✗ |
| Pasture (Grazing) | ✓ |
| Arable | ✗ |
| Scrub/Bracken | ✗ |
| Bare Outcrop | ✗ |
| Heather/Moorland | ✗ |
| Heath | ✗ |
| Built-up | ✗ |
| Coastal Grassland | ✗ |
| Other | ✗ |
Coastal promontory of that projects S from the mainland at an altitude of 12m OD; defended at the neck by two eroding banks and ditches.
| Contour Fort | ✗ |
| Partial Contour Fort | ✗ |
| Promontory Fort | ✓ |
| Hillslope Fort | ✗ |
| Level Terrain Fort | ✗ |
| Marsh Fort | ✗ |
| Multiple Enclosure Fort | ✗ |
| Hilltop | ✗ |
| Coastal Promontory | ✓ |
| Inland Promontory | ✗ |
| Valley Bottom | ✗ |
| Knoll/Hillock/Outcrop | ✗ |
| Ridge | ✗ |
| Cliff/Plateau-edge/Scarp | ✗ |
| Hillslope | ✗ |
| Lowland | ✗ |
| Spur | ✗ |
Dominant Topographic Feature: SW-facing promontory
| North | ✗ |
| Northeast | ✗ |
| East | ✗ |
| Southeast | ✗ |
| South | ✗ |
| Southwest | ✓ |
| West | ✗ |
| Northwest | ✗ |
| Level | ✗ |
Altitude: 12.0m
N/A
There is no dating available for the site
Reliability: D - None
| Pre 1200BC | ✗ |
| 1200BC - 800BC | ✗ |
| 800BC - 400BC | ✗ |
| 400BC - AD50 | ✗ |
| AD50 - AD400 | ✗ |
| AD400 - AD 800 | ✗ |
| Post AD800 | ✗ |
| Unknown | ✓ |
| Pre Hillfort: | None |
| Post Hillfort: | None |
Named as 'Illaunacoltia' on the first edition OS-inch OS map. Noted by Westropp in 1906 and 1908, when he observed that the defences have been 'greatly defaced, all the stonework having been removed beyond the present memory; the fosses probably filled at the same time to facilitate the work' (1914-16, 215). Site visited and inspected in 1989 for the compilation of the Archaeological Inventory of County Waterford (Moore 1999, 66). No stonework noted in the make-up of the enclosing elements.
| 1st Identified Map Depiction (1840): | OS six-inch mapping |
| 1st Identified Written Reference (1906): | Westropp |
| Earthwork Survey (1908): | Westropp |
| Earthwork Survey (1989): | Moore |
| Earthwork Survey (None): | Westropp |
There are no recorded internal features
None
| None | ✓ |
| Spring | ✗ |
| Stream | ✗ |
| Pool | ✗ |
| Flush | ✗ |
| Well | ✗ |
| Other | ✗ |
None
| No Known Features | ✓ |
| Round Stone Structures | ✗ |
| Rectangular Stone Structures | ✗ |
| Curvilinear Platforms | ✗ |
| Other Roundhouse Evidence | ✗ |
| Pits | ✗ |
| Quarry Hollows | ✗ |
| Other | ✗ |
None
| No Known Excavation | ✓ |
| Pits | ✗ |
| Postholes | ✗ |
| Roundhouses | ✗ |
| Rectangular Structures | ✗ |
| Roads/Tracks | ✗ |
| Quarry Hollows | ✗ |
| Other | ✗ |
| Nothing Found | ✗ |
None
| No Known Geophysics | ✓ |
| Pits | ✗ |
| Roundhouses | ✗ |
| Rectangular Structures | ✗ |
| Roads/Tracks | ✗ |
| Quarry Hollows | ✗ |
| Other | ✗ |
| Nothing Found | ✗ |
None
| No Known Finds | ✓ |
| Pottery | ✗ |
| Metal | ✗ |
| Metalworking | ✗ |
| Human Bones | ✗ |
| Animal Bones | ✗ |
| Lithics | ✗ |
| Environmental | ✗ |
| Other | ✗ |
NO APPARENT FEATURES
| APs Not Checked | ✓ |
| None | ✗ |
| Roundhouses | ✗ |
| Rectangular Structures | ✗ |
| Pits | ✗ |
| Postholes | ✗ |
| Roads/Tracks | ✗ |
| Other | ✗ |
It is suggested that the causeways that cross both the outer and inner ditches are modern in date (Moore 1999, 66; Westropp 1906, 256; 1908, 230; 1914-16, 215)
| 1: | None |
| 2: | None |
Guard Chambers: ✗
Chevaux de Frise: ✗
Defended at the neck by two eroding banks and ditches. The inner bank measures 22m in length by 4.8m in width and has an internal height of 0.35m. The external ditch measures 0.5m in depth and is separated from the outer bank (Wth 2m by 0.3m in height) and ditch (Dpth 1.45m) by a 12m wide berm.
| Area 1: | 0.18ha. |
| Total: | 0.18ha. |
Total Footprint Area: 0.27ha.
None
| ✗ | None |
| ✗ | None |
| NE Quadrant: | 0 |
| SE Quadrant: | 0 |
| SW Quadrant: | 0 |
| NW Quadrant: | 1 |
| Total: | 1 |
| Partial Univallate | ✓ |
| Univallate | ✗ |
| Partial Bivallate | ✗ |
| Bivallate | ✗ |
| Partial Multivallate | ✗ |
| Multivallate | ✗ |
| Unknown | ✗ |
| Partial Univallate | ✗ |
| Univallate | ✗ |
| Partial Bivallate | ✗ |
| Bivallate | ✗ |
| Partial Multivallate | ✗ |
| Multivallate | ✗ |
Westropp notes that banks lay 13m apart and had evidence of stone facing however none of this survives today.
| None | ✗ |
| Earthen Bank | ✓ |
| Stone Wall | ✗ |
| Rubble | ✗ |
| Wall-walk | ✗ |
| Evidence of Timber | ✗ |
| Vitrification | ✗ |
| Other Burning | ✗ |
| Palisade | ✗ |
| Counter Scarp Bank | ✗ |
| Berm | ✗ |
| Unfinished | ✗ |
| Other | ✗ |
None
| None | ✗ |
| Earthen Bank | ✗ |
| Stone Wall | ✗ |
| Murus Duplex | ✗ |
| Timber-framed | ✗ |
| Timber-laced | ✗ |
| Vitrification | ✗ |
| Other Burning | ✗ |
| Palisade | ✗ |
| Counter Scarp Bank | ✗ |
| Berm | ✗ |
| Unfinished | ✗ |
| No Known Excavation | ✓ |
| Other | ✗ |
| ✗ | None |
| ✓ | Two lines of enclosure set 12m apart |
Number of Ditches: 2
| ✗ | None |
Moore, M. 1999. Archaeological inventory of County Waterford, 64-8. The stationary Office, Dublin.
Westropp, T. J. 1906. Notes on certain Promontory Forts in the counties of Waterford and Wexford. The Journal of the Royal Society of Antiquaries of Ireland 36 (3), 239-25.
Westropp, T.J. 1914-16 Fortified headlands and castles on the south coast of Munster: Part II, from Ardmore to Dunmore, Co. Waterford. Proceedings of the Royal Irish Academy 32C, 188-227
Atlas of Hillforts:
Wikidata:
This work is licensed under CC BY-SA 4.0
and should be cited as:
Lock, Gary and Ralston, Ian. 2024. Atlas of Hillforts of Britain and Ireland. Available at: https://hillforts.arch.ox.ac.uk
Document Version 1.1
