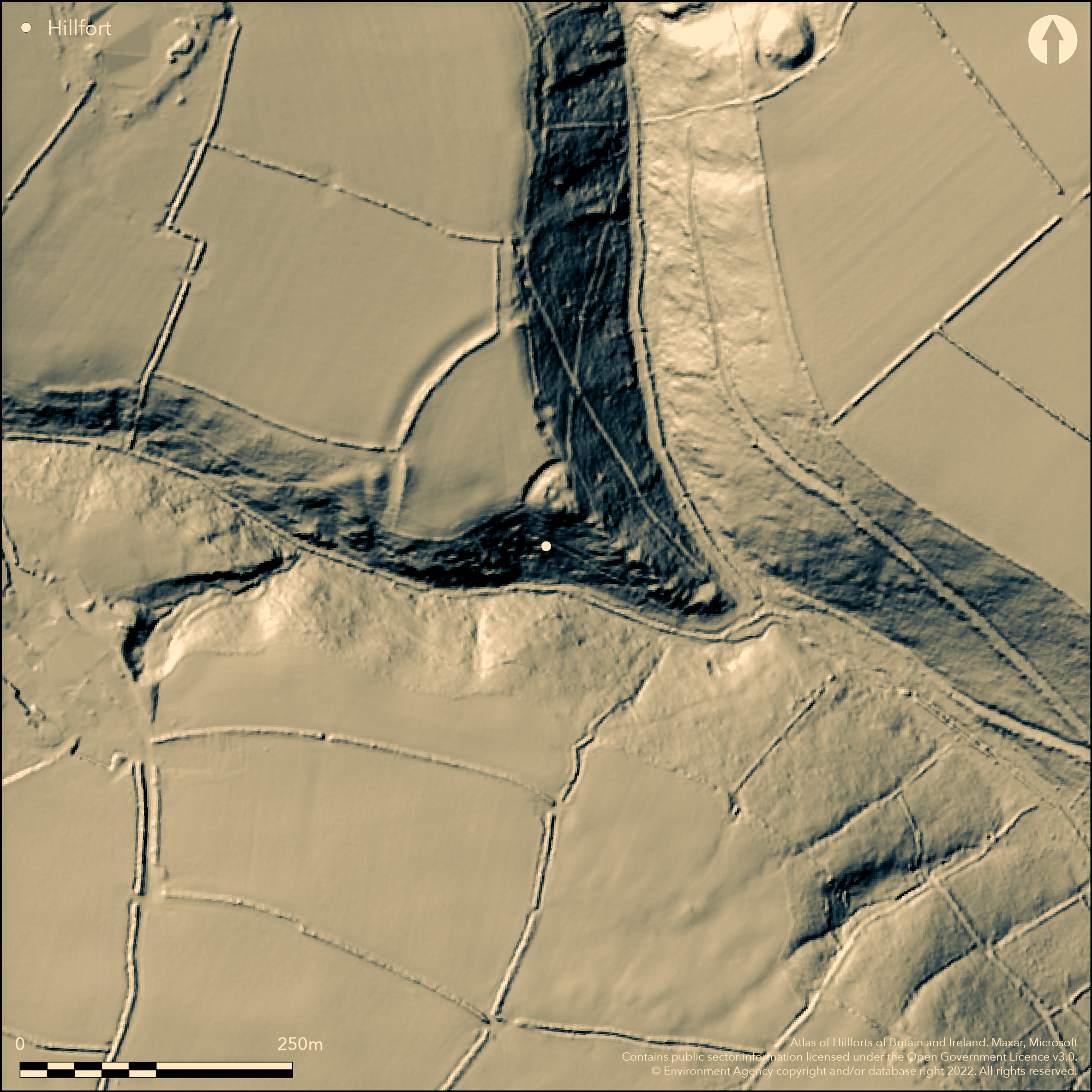

LiDAR 1m DTM Hillshade

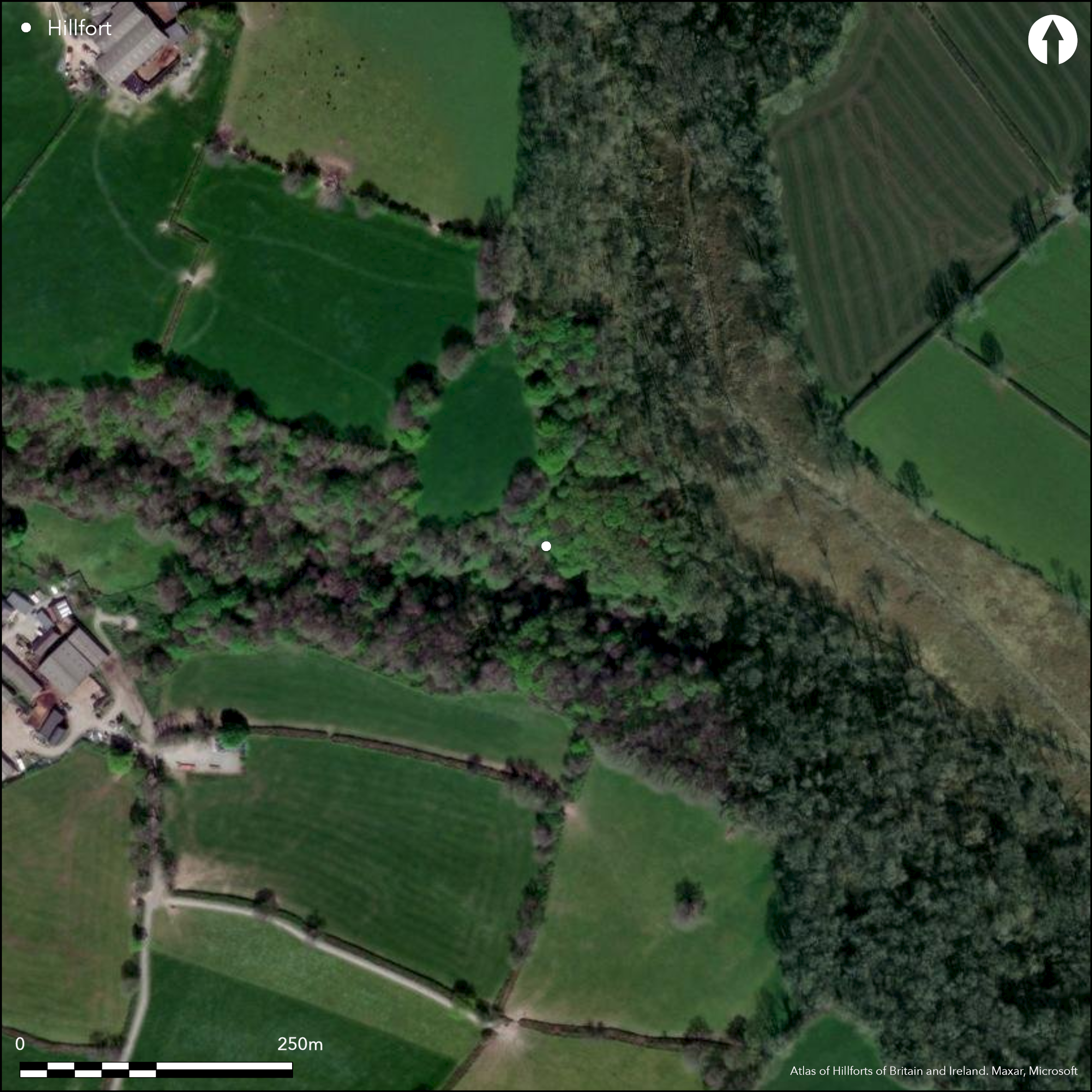

Satellite Imagery
LiDAR 1m DTM Hillshade
Satellite Imagery
Scroll left/right to view further images.
HER: Dyfed 5072 (None)
NMR: SN 22 NW (11953)
SM: CM131(CAM)
NGR: SN24622730
X: 224620 Y: 227300 (OSGB36)
Inland promontory fort located on a SE-facing spur at the confluence of wooded and steep stream tributaries of the Afon Cynin. Fairly large for the area. Steep slopes to NE through to W, moderate along spur to NW. Naturally defended with steep drop of c. 30m to the streams below on NE, S through to W, with curving rampart c. 110m long cutting off the promontory on the NW, easily approachable side, to form internal area c. 110m E-W by 100m, with internal area 0.64ha. Bank rises to c. 2.5m above a ditch, mostly silted, but to 1m deep and 11m wide. Gap on SW side of bank possible entrance. Bank crossed by vehicle track at NE and here reduced. At SE tip of the promontory, 2m wide rock-cut ditch isolates small, overgrown and disturbed mound c. 25m across; possibly medieval feature of uncertain origin although 'Tumulus' recorded on 1st Ed. OS map (1889). Interior under improved pasture, bank tree and scrub covered. Minimal investigations, undated.
Citizen Science: ✗
Reliability of Data: Confirmed
Reliability of Interpretation: Confirmed
X: -506675 Y: 6785042 (EPSG: 3857)
Longitude: -4.551536700261439 Latitude: 51.91649959292795 (EPSG:4326)
Country: Wales
Current County or Unitary Authority: Carmarthenshire
Historic County: Carmarthenshire
Current Parish/Community/Council/Townland: Llanwinio
Reduced but fair condition.
| Extant | ✓ |
| Cropmark | ✗ |
| Likely Destroyed | ✗ |
Pasture interior, trees and scrub on banks.
| Woodland | ✗ |
| Commercial Forestry Plantation | ✗ |
| Parkland | ✗ |
| Pasture (Grazing) | ✓ |
| Arable | ✗ |
| Scrub/Bracken | ✗ |
| Bare Outcrop | ✗ |
| Heather/Moorland | ✗ |
| Heath | ✗ |
| Built-up | ✗ |
| Coastal Grassland | ✗ |
| Other | ✗ |
Inland promontory fort located on a SE-facing spur at the confluence of wooded and steep stream tributaries of the Afon Cynin. Fairly large for the area. Steep slopes to NE through to W, moderate along spur to NW.
| Contour Fort | ✗ |
| Partial Contour Fort | ✗ |
| Promontory Fort | ✓ |
| Hillslope Fort | ✗ |
| Level Terrain Fort | ✗ |
| Marsh Fort | ✗ |
| Multiple Enclosure Fort | ✗ |
| Hilltop | ✗ |
| Coastal Promontory | ✗ |
| Inland Promontory | ✓ |
| Valley Bottom | ✗ |
| Knoll/Hillock/Outcrop | ✗ |
| Ridge | ✗ |
| Cliff/Plateau-edge/Scarp | ✗ |
| Hillslope | ✗ |
| Lowland | ✗ |
| Spur | ✗ |
Dominant Topographic Feature: Spur
| North | ✗ |
| Northeast | ✗ |
| East | ✗ |
| Southeast | ✓ |
| South | ✗ |
| Southwest | ✗ |
| West | ✗ |
| Northwest | ✗ |
| Level | ✗ |
Altitude: 155.0m
N/A
None. At SE tip of the promontory, 2m wide rock-cut ditch isolates small, overgrown and disturbed mound c. 25m across. Possibly medieval feature of uncertain origin.
Reliability: D - None
| Pre 1200BC | ✗ |
| 1200BC - 800BC | ✗ |
| 800BC - 400BC | ✗ |
| 400BC - AD50 | ✗ |
| AD50 - AD400 | ✗ |
| AD400 - AD 800 | ✗ |
| Post AD800 | ✗ |
| Unknown | ✓ |
| Pre Hillfort: | None |
| Post Hillfort: | Possible medieval activity. |
'Tumulus' recorded on 1st Ed. OS map (1889). Field Observation OS 1976. Field Observation DAT 1983, 1984. Field Observation CADW 2003. Dyfed Archaeological Trust defended enclosures survey 2007-2008. ;
| 1st Identified Map Depiction (1889): | 'Tumulus' recorded on 1st Ed. OS map. |
| Other (1976): | Field Observation OS. |
| Other (2003): | Field observation CADW. |
| Other (None): | Field Observation DAT. |
| Other (None): | Dyfed Archaeological Trust defended enclosures survey |
None
Afon Sion 0.1 km outside fort.
| None | ✓ |
| Spring | ✗ |
| Stream | ✗ |
| Pool | ✗ |
| Flush | ✗ |
| Well | ✗ |
| Other | ✗ |
None
| No Known Features | ✓ |
| Round Stone Structures | ✗ |
| Rectangular Stone Structures | ✗ |
| Curvilinear Platforms | ✗ |
| Other Roundhouse Evidence | ✗ |
| Pits | ✗ |
| Quarry Hollows | ✗ |
| Other | ✗ |
None
| No Known Excavation | ✓ |
| Pits | ✗ |
| Postholes | ✗ |
| Roundhouses | ✗ |
| Rectangular Structures | ✗ |
| Roads/Tracks | ✗ |
| Quarry Hollows | ✗ |
| Other | ✗ |
| Nothing Found | ✗ |
None
| No Known Geophysics | ✓ |
| Pits | ✗ |
| Roundhouses | ✗ |
| Rectangular Structures | ✗ |
| Roads/Tracks | ✗ |
| Quarry Hollows | ✗ |
| Other | ✗ |
| Nothing Found | ✗ |
None
| No Known Finds | ✓ |
| Pottery | ✗ |
| Metal | ✗ |
| Metalworking | ✗ |
| Human Bones | ✗ |
| Animal Bones | ✗ |
| Lithics | ✗ |
| Environmental | ✗ |
| Other | ✗ |
None
| APs Not Checked | ✓ |
| None | ✗ |
| Roundhouses | ✗ |
| Rectangular Structures | ✗ |
| Pits | ✗ |
| Postholes | ✗ |
| Roads/Tracks | ✗ |
| Other | ✗ |
Gap on SW side of bank possible entrance.
| 1: | None |
| 2: | None |
Guard Chambers: ✗
Chevaux de Frise: ✗
| 1. Simple Gap (South west): | None |
Curving rampart c. 110m long cuts off the promontory on the NW, easily approachable side.
| Area 1: | 0.64ha. |
| Total: | 0.64ha. |
Total Footprint Area: Noneha.
None
| ✗ | None |
| ✗ | None |
| NE Quadrant: | 0 |
| SE Quadrant: | 0 |
| SW Quadrant: | 0 |
| NW Quadrant: | 1 |
| Total: | 1 |
| Partial Univallate | ✓ |
| Univallate | ✗ |
| Partial Bivallate | ✗ |
| Bivallate | ✗ |
| Partial Multivallate | ✗ |
| Multivallate | ✗ |
| Unknown | ✗ |
| Partial Univallate | ✗ |
| Univallate | ✗ |
| Partial Bivallate | ✗ |
| Bivallate | ✗ |
| Partial Multivallate | ✗ |
| Multivallate | ✗ |
None
| None | ✗ |
| Earthen Bank | ✓ |
| Stone Wall | ✗ |
| Rubble | ✗ |
| Wall-walk | ✗ |
| Evidence of Timber | ✗ |
| Vitrification | ✗ |
| Other Burning | ✗ |
| Palisade | ✗ |
| Counter Scarp Bank | ✗ |
| Berm | ✗ |
| Unfinished | ✗ |
| Other | ✗ |
None
| None | ✗ |
| Earthen Bank | ✗ |
| Stone Wall | ✗ |
| Murus Duplex | ✗ |
| Timber-framed | ✗ |
| Timber-laced | ✗ |
| Vitrification | ✗ |
| Other Burning | ✗ |
| Palisade | ✗ |
| Counter Scarp Bank | ✗ |
| Berm | ✗ |
| Unfinished | ✗ |
| No Known Excavation | ✓ |
| Other | ✗ |
| ✗ | None |
| ✓ | None |
Number of Ditches: 1
| ✗ | None |
Murphy, F., Ramsey, R., Page, M. and Murphy, K. 2008. A Survey of Defended Enclosures in Carmarthenshire, 2007-08: Gazetteer of Ordnance Survey Grid Squares SN22, SN23 and SN24, Dyfed Archaeological Trust Report No. 2007/27, Project Record No. 62767, Llandeilo: Dyfed Archaeological Trust.
Royal Commission on the ancient and historical monuments and constructions in Wales and Monmouthshire 1917. An inventory of the ancient monuments in Wales and Monmouthshire, V, Carmarthen, 587, London: HMSO.
Savory, H.N. 1954. List of hill-forts and other earthworks in Carmarthenshire. Bull Board Celtic Stud, 16, 66.
Atlas of Hillforts:
Wikidata:
This work is licensed under CC BY-SA 4.0
and should be cited as:
Lock, Gary and Ralston, Ian. 2024. Atlas of Hillforts of Britain and Ireland. Available at: https://hillforts.arch.ox.ac.uk
Document Version 1.1
